MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

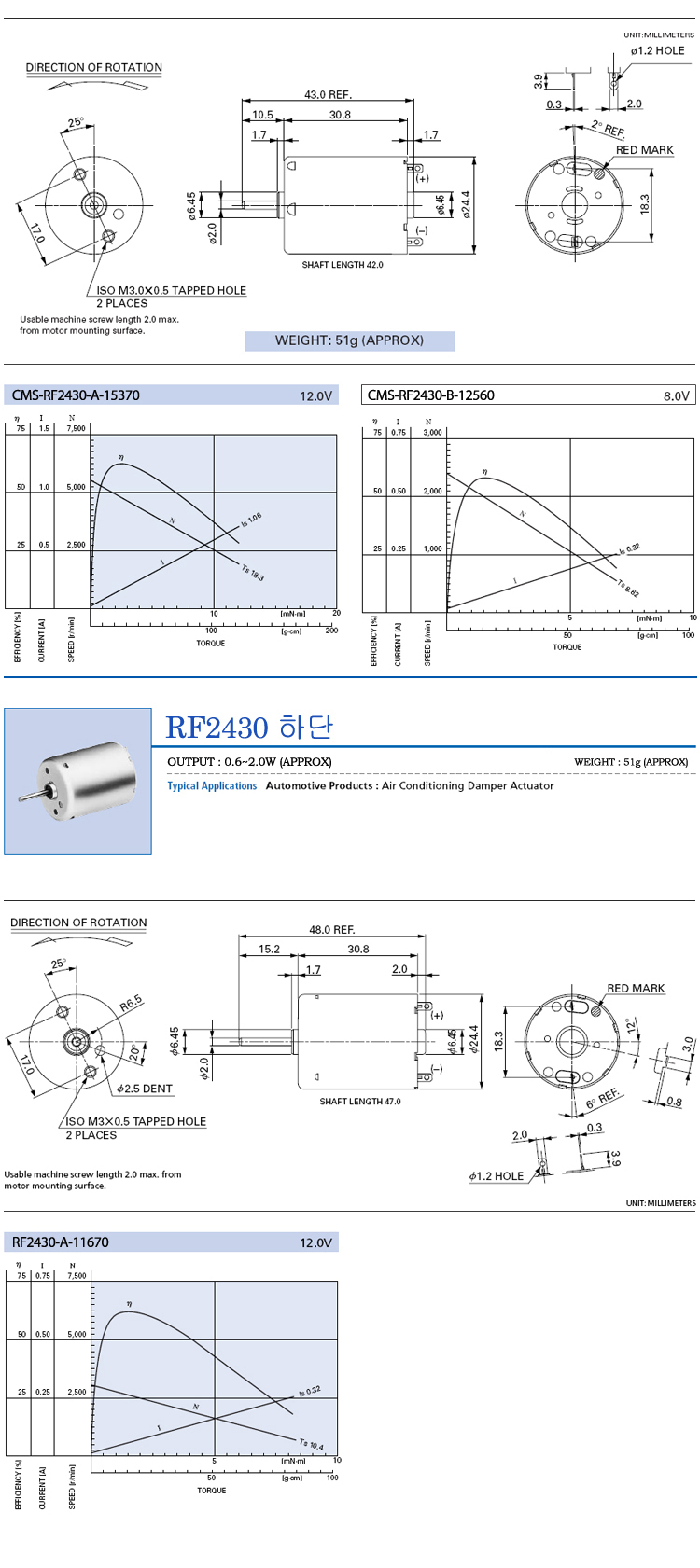

CMS-RF2430-A-15370 |
3~12 |
12V CONSTANT |
5600 |
0.026 |
4840 |
0.17 |
2.48 |
25.3 |
1.25 |
18.3 |
187 |
1.06 |
|
CMS-RF2430-B-12560 |
4~12 |
8V CONSTANT |
2400 |
0.015 |
1970 |
0.069 |
1.57 |
16.0 |
0.32 |
8.82 |
90 |
0.32 |
|
CMS-RF2430-A-11670 |
7~16 |
12V CONSTANT |
3100 |
0.011 |
2620 |
0.059 |
1.63 |
16.6 |
0.45 |
10.4 |
106 |
0.32 |
|
| |
 |
|
|
|
|
|
