MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

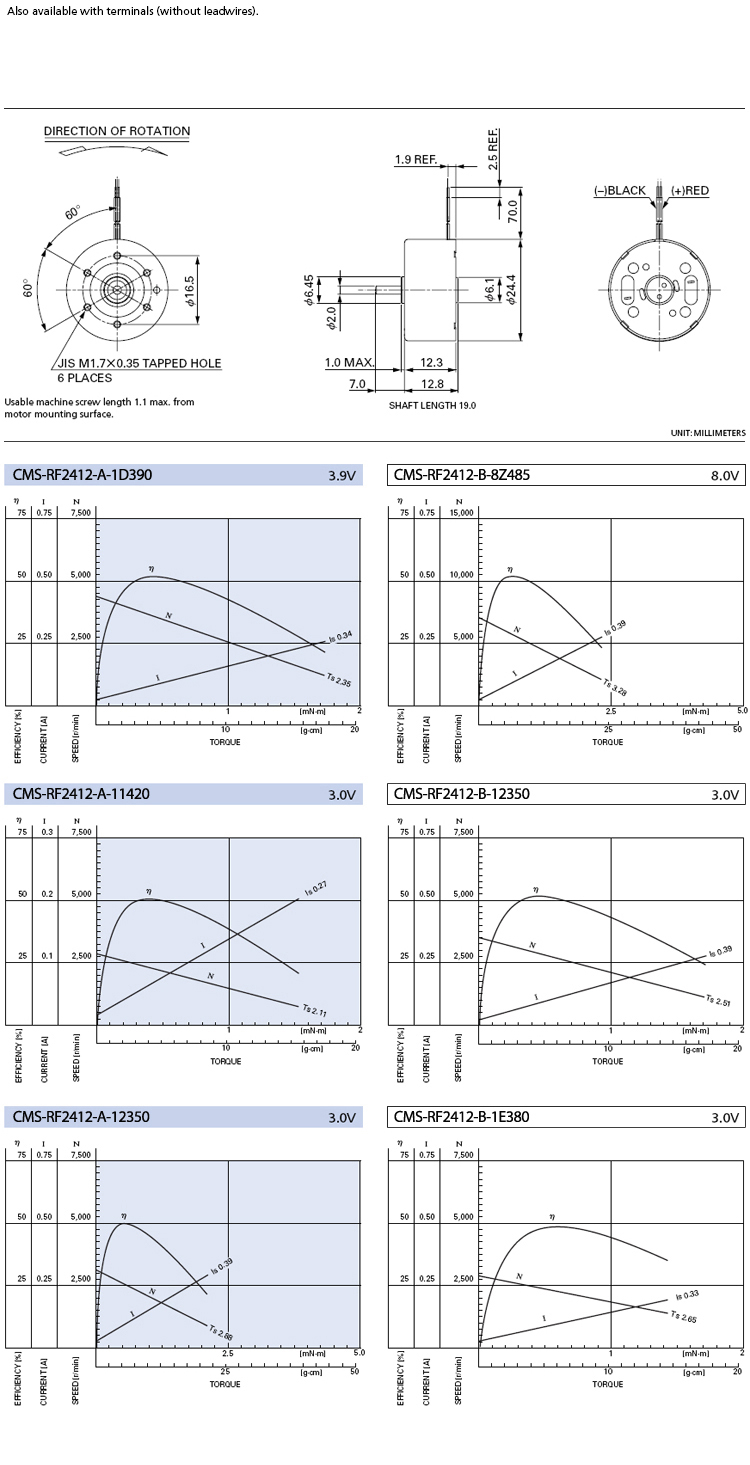

CMS-RF2412-A-1D390 |
2.8~7.0 |
3.9V CONSTANT |
4400 |
0.021 |
3520 |
0.084 |
0.47 |
4.8 |
0.17 |
2.35 |
24 |
0.34 |
|
CMS-RF2412-B-8Z485 |
1.6~11.0 |
8V CONSTANT |
7100 |
0.021 |
5760 |
0.090 |
0.62 |
6.3 |
0.37 |
3.28 |
33 |
0.39 |
|
CMS-RF2412-A-11420 |
0.7~5.0 |
3V CONSTANT |
2900 |
0.017 |
2320 |
0.068 |
0.42 |
4.3 |
0.10 |
2.11 |
22 |
0.27 |
|
CMS-RF2412-B-12350 |
1.5~6.0 |
3V CONSTANT |
3500 |
0.022 |
2830 |
0.093 |
0.48 |
4.9 |
0.14 |
2.51 |
26 |
0.39 |
|
| |
 |
|
|
|
|
|
