MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

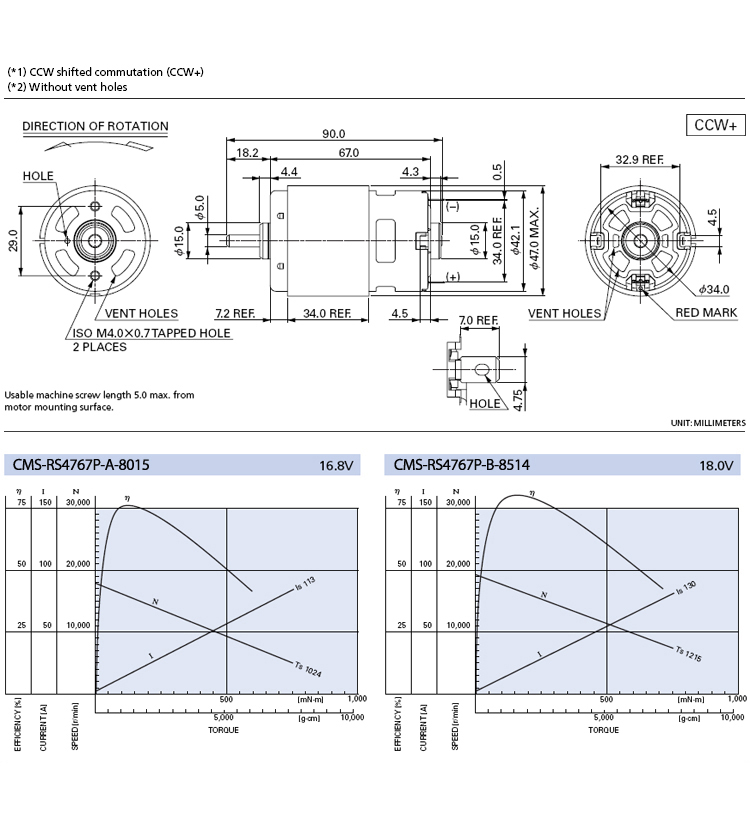

CMS-RS4767P-A-8015(*1) |
6~20 |
16.8V CONSTANT |
18000 |
2.60 |
15630 |
17.1 |
135 |
1375 |
220 |
1024 |
10438 |
113 |
|
CMS-RS4767P-B-8514(*1) |
6~20 |
18V CONSTANT |
19500 |
2.70 |
17040 |
18.7 |
153 |
1560 |
273 |
1215 |
12385 |
130 |
|
CMS-RS4767P-C-26100(*2) |
12~27 |
24V CONSTANT |
3500 |
0.14 |
3010 |
0.86 |
48.6 |
495 |
15.3 |
348 |
3547 |
5.32 |
|
| |
 |
|
|
|
|
|
