MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

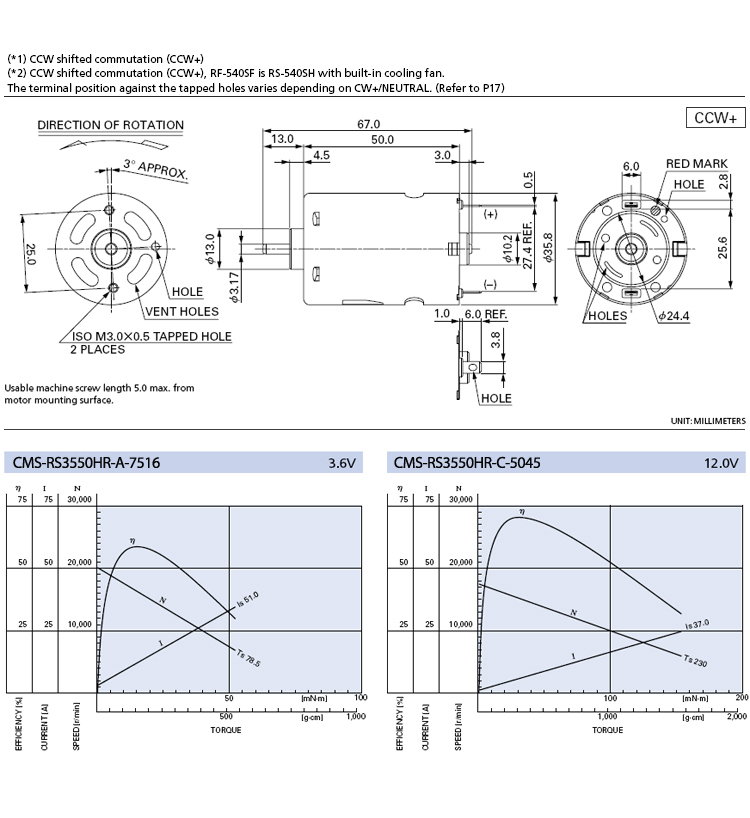

CMS-RS3550HR-A-7516(*1) |
2.4~4.5 |
3.6V CONSTANT |
20200 |
2.90 |
16310 |
12.2 |
15.1 |
154 |
25.8 |
78.5 |
800 |
51.0 |
|
CMS-RS3550HR-B-5045 |
4.5~9.6 |
6V CONSTANT |
11600 |
0.82 |
9660 |
4.09 |
14.4 |
147 |
14.6 |
86.3 |
880 |
20.4 |
|
CMS-RS3550HR-C-5045(*2) |
4.5~12.0 |
12V CONSTANT |
17500 |
0.95 |
15080 |
5.93 |
31.8 |
324 |
50.1 |
230 |
2345 |
37.0 |
|
| |
 |
|
|
|
|
|
