MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

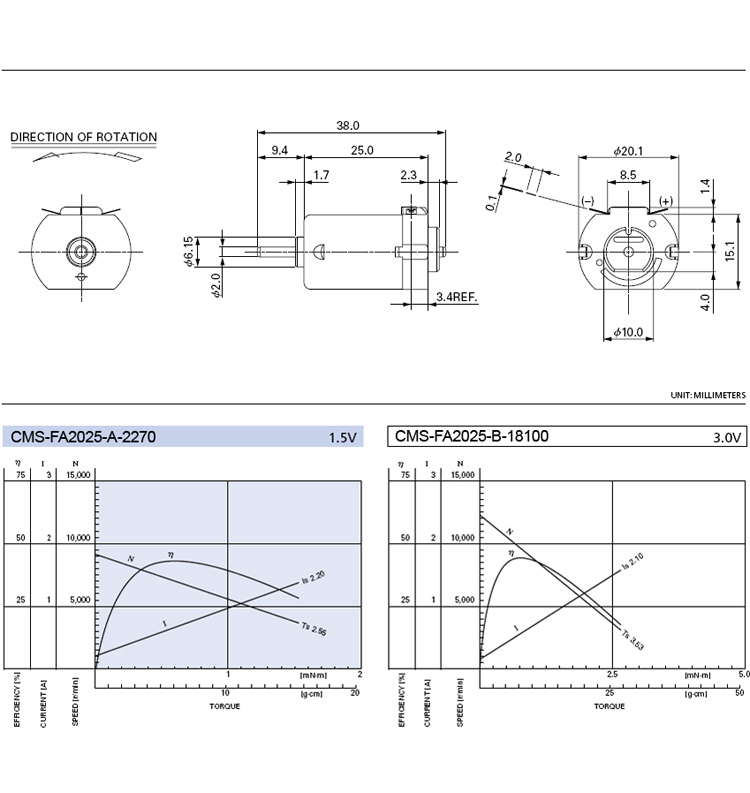

CMS-FA2025-A-2270 |
1.5~3.0 |
1.5V CONSTANT |
9100 |
0.20 |
6990 |
0.66 |
0.59 |
6.0 |
0.43 |
2.55 |
26 |
2.20 |
|
CMS-FA2025-B-18100 |
1.5~3.0 |
3V CONSTANT |
12300 |
0.15 |
9710 |
0.56 |
0.71 |
7.6 |
0.76 |
3.53 |
36 |
2.10 |
|
CMS-FA2025-C-14150 |
1.5-4.5 |
3V CONSTANT |
8300 |
0.11 |
6150 |
0.31 |
0.55 |
5.6 |
0.35 |
2.11 |
22 |
0.90 |
|
| |
 |
|
|
|
|
|
