MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

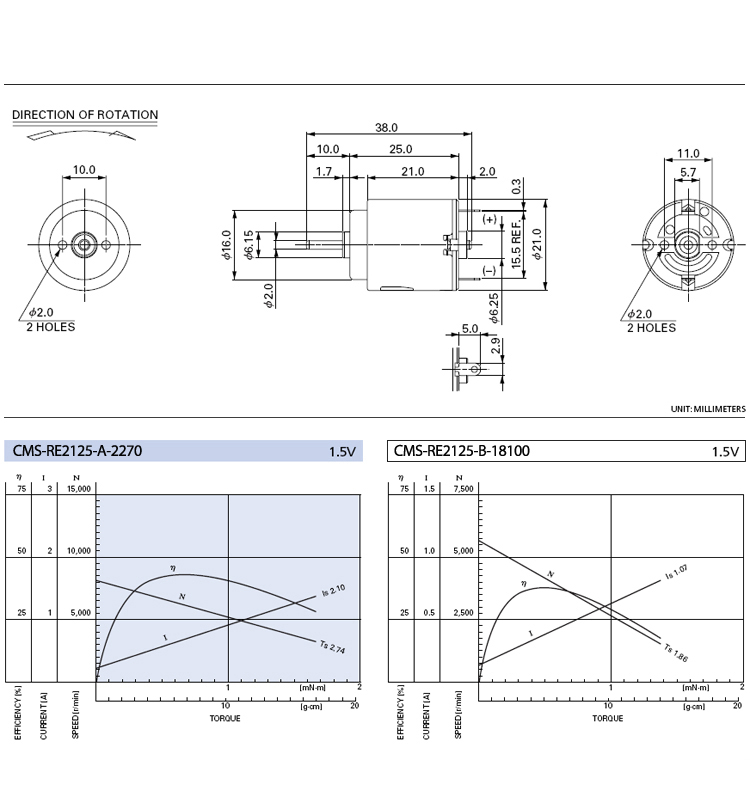

CMS-RE2125-A-2270 |
1.5~3.0 |
1.5V CONSTANT |
8100 |
0.21 |
6150 |
0.66 |
0.66 |
6.7 |
0.42 |
2.74 |
28 |
2.10 |
|
CMS-RE2125-B-18100 |
1.5~3.0 |
1.5V CONSTANT |
5700 |
0.13 |
4230 |
0.37 |
0.48 |
4.9 |
0.21 |
1.86 |
19 |
1.07 |
|
CMS-RE2125-C-12240 |
3~6 |
3V CONSTANT |
4800 |
0.050 |
3530 |
0.14 |
0.44 |
4.5 |
0.16 |
1.67 |
17 |
0.39 |
|
| |
 |
|
|
|
|
|
