MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

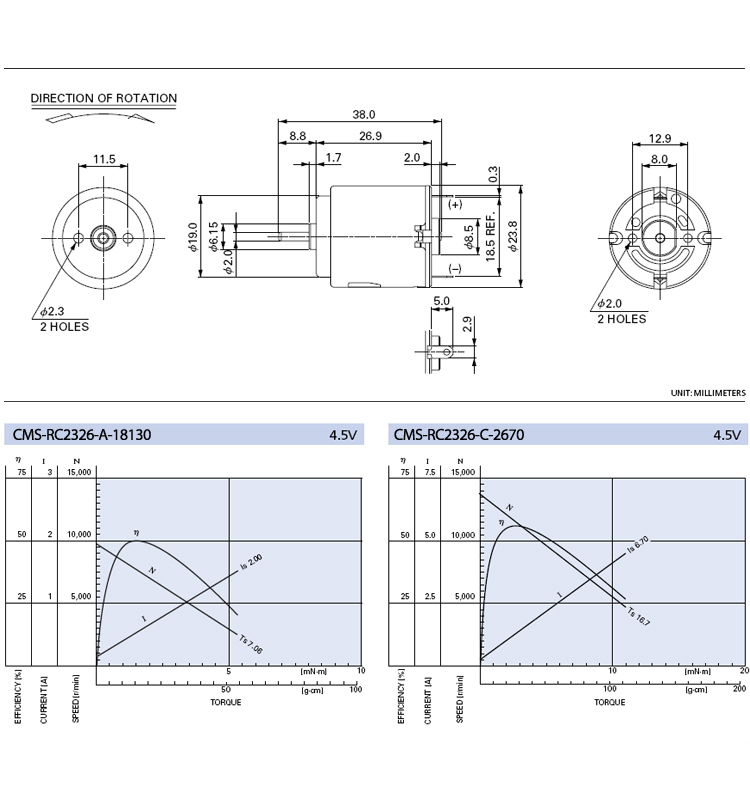

CMS-RC2326-A-18130 |
4.5~6.0 |
4.5V CONSTANT |
9800 |
0.14 |
7750 |
0.53 |
1.48 |
15.1 |
1.20 |
7.06 |
72 |
2.00 |
|
CMS-RC2326-B-2670 |
3.0~4.5 |
4.5V CONSTANT |
18500 |
0.30 |
15290 |
1.43 |
2.14 |
21.8 |
3.41 |
12.3 |
125 |
6.80 |
|
CMS-RC2326-C-2670 |
3.0~4.5 |
4.5V CONSTANT |
13700 |
0.24 |
11520 |
1.27 |
2.66 |
27.1 |
3.20 |
16.7 |
170 |
6.70 |
|
CMS-RC2326-D2295 |
3~6 |
4.5V CONSTANT |
10200 |
0.20 |
8300 |
0.87 |
2.43 |
24.7 |
2.11 |
13.0 |
133 |
3.80 |
|
| |
 |
|
|
|
|
|
