MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

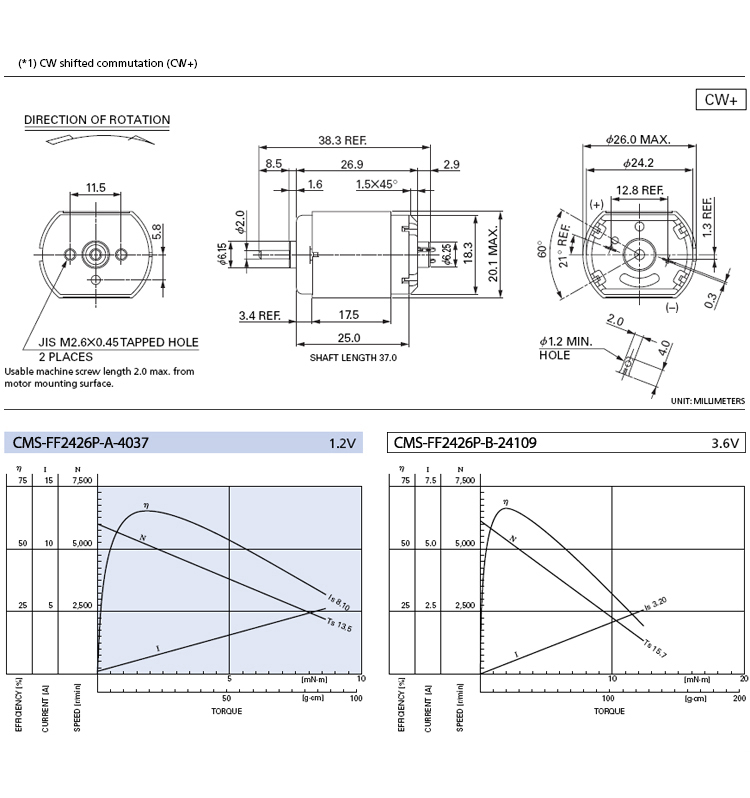

CMS-FF2426P-A-4037*1 |
1~2 |
1.2V CONSTANT |
6000 |
0.20 |
5190 |
1.27 |
1.83 |
18.7 |
0.99 |
13.5 |
138 |
8.10 |
|
CMS-FF2426P-B-24109*1 |
1.5~6.0 |
3.6V CONSTANT |
6100 |
0.070 |
5310 |
0.47 |
2.02 |
20.6 |
1.12 |
15.7 |
160 |
3.20 |
|
CMS-FF2426P-C-07890*1 |
13~36 |
30V CONSTANT |
6200 |
0.010 |
5260 |
0.056 |
1.86 |
18.9 |
1.02 |
12.2 |
124 |
0.31 |
|
| |
 |
|
|
|
|
|
