MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

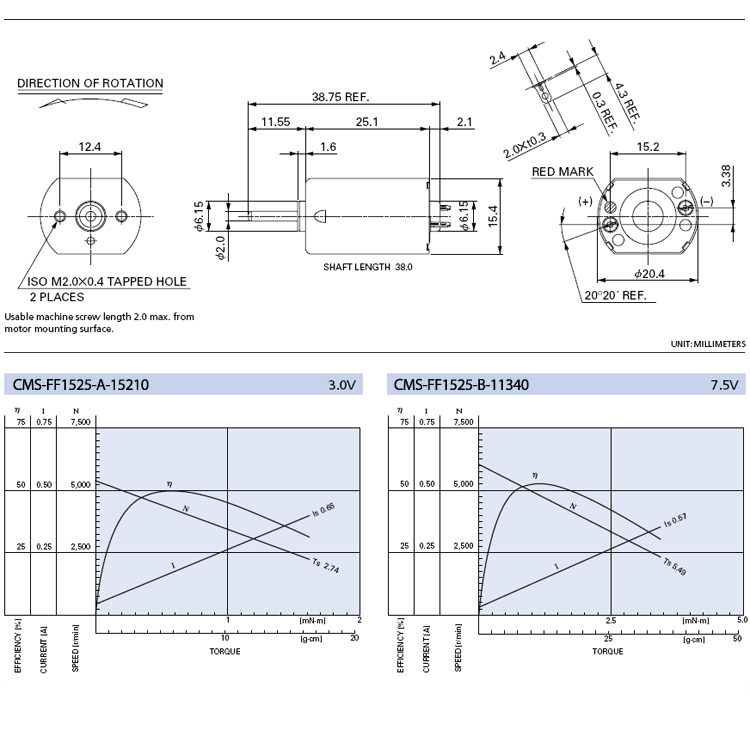

CMS-FF1525-A-15210 |
1~4 |
3V CONSTANT |
5400 |
0.045 |
4280 |
0.17 |
0.57 |
5.8 |
0.26 |
2.74 |
28 |
0.65 |
|
CMS-FF1525-B-11340 |
3~12 |
7.5V CONSTANT |
6100 |
0.033 |
4920 |
0.14 |
1.06 |
10.9 |
0.55 |
5.49 |
56 |
0.57 |
|
CMS-FF1525-C-14230 |
2.5~10.0 |
3V CONSTANT |
3600 |
0.037 |
2850 |
0.14 |
0.74 |
7.5 |
0.22 |
3.53 |
36 |
0.53 |
|
| |
 |
|
|
|
|
|
